Cast-Iron Gate Valves: Practical Features, Benefits, and Uses
Can one reliable valve reduce maintenance and extend system uptime?
At Yaxing Valve, I make and supply Cast Iron Gate Valve Manufacturer and support their quality and after-sales support for U.S. clients. This product line is built for long life in public water and light industrial applications.
Every valve combines a rugged cast-iron body, a precision-machined wedge guide, and simple handwheel operation. That means reliable shutoff, easy upkeep, and predictable performance in mechanical rooms, fire loops, and distribution networks.
I support specifiers with fast submittals and transparent details: sizes, connection types, pressure classes, and optional accessories. My site stores account preferences and carts via cookies to simplify repeat orders.
If you need a practical replacement or a cost-effective option for new projects, compare my cast iron gate benefits with your current hardware to identify life-cycle gains and field fit.
Reliable Flow Control: Why I Trust Yaxing Valve Cast Iron Gate Valves
I verify each Yaxing Valve product myself to confidently recommend it for demanding U.S. applications.

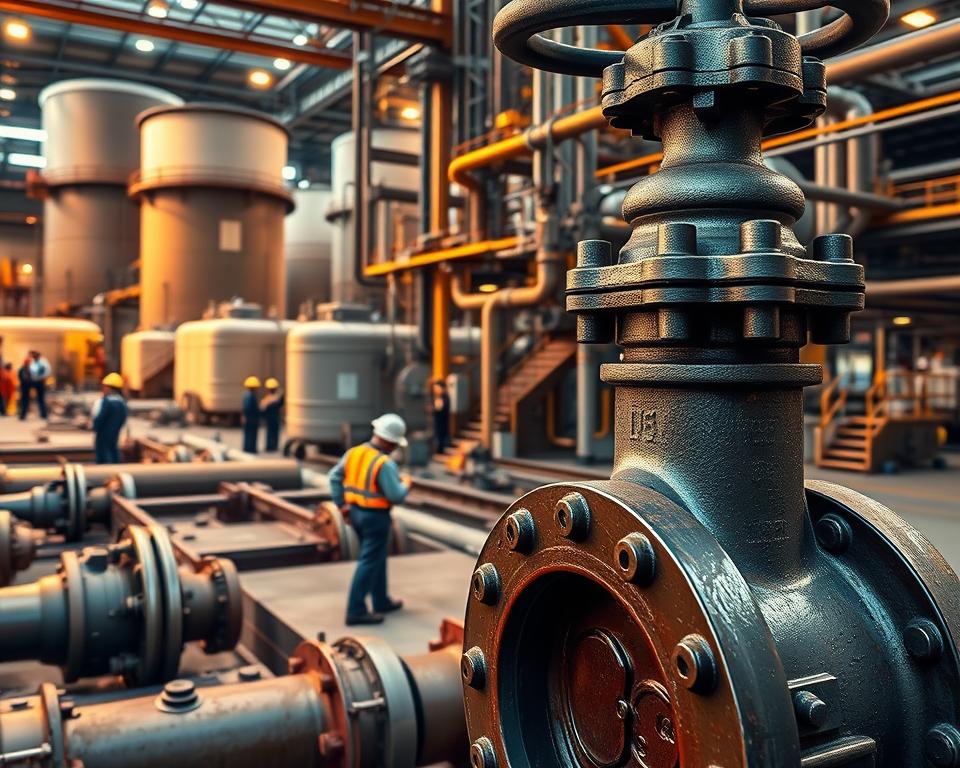

Built for industrial performance with a robust cast iron body
Every valve features a strong cast-iron body that resists load-induced deformation. Precision machining with metal-to-metal seating provides tight shutoff at critical moments.
Flow-optimized design with minimal pressure loss
The internal path is optimized to lower turbulence and pressure loss. This helps pumps operate efficiently while reducing energy consumption.
- Dimensions and testing are validated to ANSI norms and internal criteria.
- I refine stem/wedge/bonnet interfaces to reduce friction and maintain consistent torque over time.
- Body thickness targets balance durability with manageable handling weight.
- My product support documents tests and standards so procurement can finalize orders fast.
| Key Feature | Advantage | Specification |
|---|---|---|
| Cast iron body | High rigidity | Stable geometry targets met |
| Streamlined gate | Less headloss | Supports pump efficiency |
| Stem & handwheel finish | Low-effort operation | Stable torque for extended life |
| Test documentation | Faster spec approval | Reports aligned to ANSI |
cast iron gate valves: Materials, Design Details, and Performance Essentials
I break down body, sealing, and stem options to simplify selection and ordering.
Materials: body, bonnet, and wedge
Material stack-up: cast-iron body and bonnet, precision-machined wedge, metal-to-metal seat interface for reliable shutoff in water service and general industry.
Stem and Handwheel Options
I offer non-rising stem and inside screw stems for compact installations. Screw thread forms and packing arrangements are fully documented.
Standards and performance limits
Qualified pressure/temperature ranges are published and end connections align with common ANSI standards so engineers can confirm fit quickly.
- Handwheel and stem interface tuned for steady torque.
- Optimized internals minimize pressure loss through the gate.
- Series codes with submittal-ready specs shorten ordering cycles.
| Component | Construction | Rated Limit | Notes |
|---|---|---|---|
| Body and Bonnet | Cast-iron | 150 psi | ANSI flange dimensions, welded/bolted options |
| Valve wedge | Precision-machined metal | −20° to 180°F service | Metal seat with low-loss finish |
| Stem | Non-rising / inside screw | Not pressure rated | Documented thread and packing in datasheet |
| Series | YX-100 / YX-200 | 2–12 inch range | Clear part numbering for quick bids |
Applications, Installation, and Day-to-Day Operation
I advise contractors/owners on best-fit placements in today’s water and utility circuits. The goal is straightforward selection, installation, and checks so crews finish commissioning without call-backs.
Use cases: waterworks, building systems, general industry
Select full-port units for low restriction across long mains, service feeds, and bypass lines.
For mechanical rooms and industrial loops with limited headroom, I favor non-rising stem or inside-screw designs.
Installation guidelines
Protect the valve body during handling; lift at rated points and avoid flange stress. Confirm end alignment before final bolt torquing to prevent leaks and distortion.
Choose media-compatible gaskets, use a cross-torque sequence, and provide supports to prevent sag.
Operation and maintenance notes
Position the handwheel for easy access and verify free movement after packing tweaks.
Schedule torque checks under pressure, inspect wedge and packing, and confirm operating range versus the media. Record tag numbers in your maintenance account and link CMMS work orders.
| Area | Action | Timing | Outcome |
|---|---|---|---|
| Application mapping | Choose full-port for mains; NRS for confined areas | Design phase | Lower headloss; space savings |
| Handling & installation | Lift at rated points, align ends, cross-torque | Field install | Prevents flange stress and leaks |
| Commissioning checks | Check smooth handwheel feel and pressure-test | Commissioning & routine | Stable operation with reliable shutoff |
| Maintenance records | Tag valves and link to account/CMMS | Throughout lifecycle | Speedy parts ID and replacements |
Correct handling/commissioning extends service life and keeps Resilient Seated Gate Valve performing and looking like new.
Work with Me at Yaxing Valve to Specify the Right Iron Gate Valve Today
Contact me with your line size, pressure expectations, and flow needs and I will match the exact series and type to your duty range and temperature limits.
I use a short checklist so submittals pass first review: end connections, inside screw or non-rising preference, and handwheel orientation. I also note stem handwheel and screw details for clear install guidance.
View the images gallery for high-resolution images and a clean gallery layout that shows clearance and operator reach. Open an account so specs are saved, valves are tag-tracked, and drawings/one-page PDFs are linked.
Reach out for a quick quote—I’ll confirm stock, lead times, series alternatives, and help you finish the order while you review the gallery. We only use cookies to keep your session and cart active.
